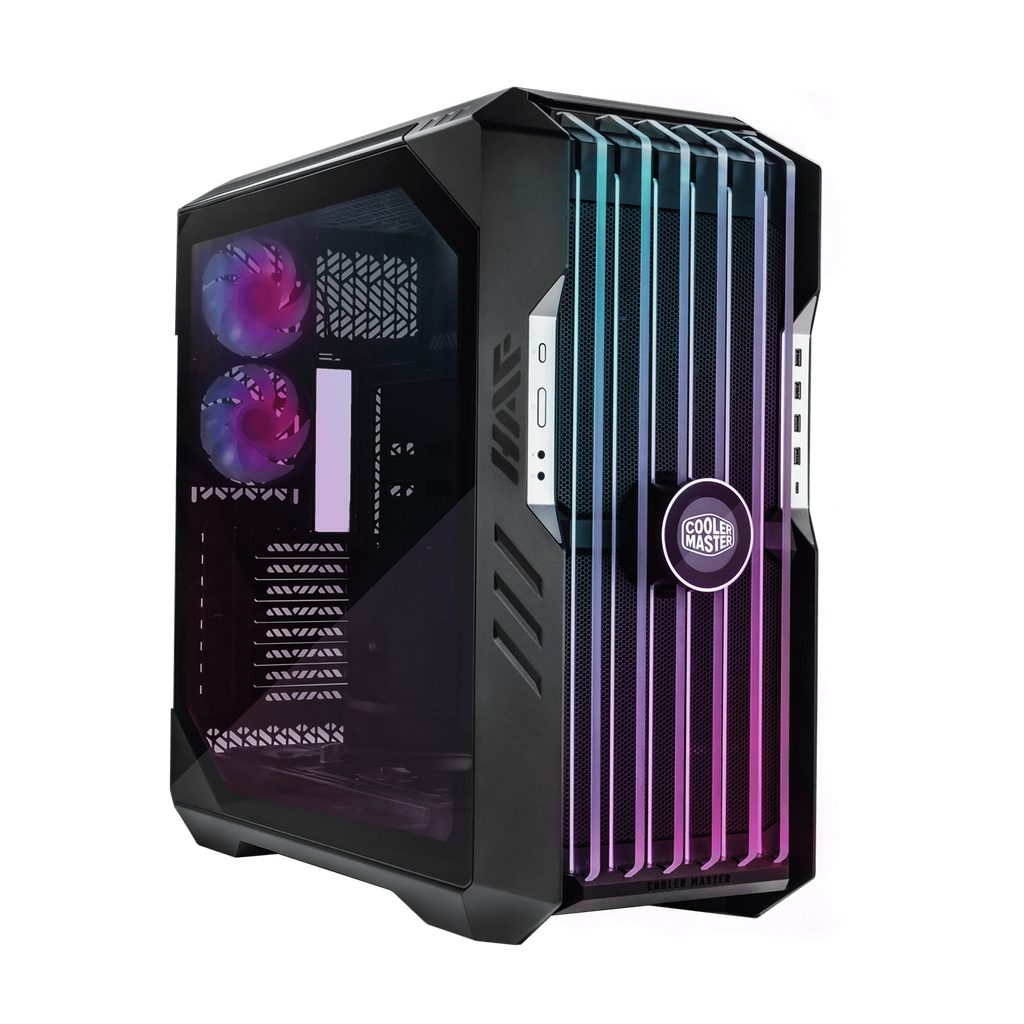

| Model Number | H700E-IGNN-S00 |
|
| Exterior Color | Titanium Grey |
|
| Materials - Exterior | Mesh, Steel, Plastic |
|
| Materials - Left Side Panel | Tempered Glass, Steel |
|
| Dimensions (L x W x H) | 556 x 279 x 540 mm (Body Size), 666 x 291 x 626 mm (incl. Protrusions) |
|

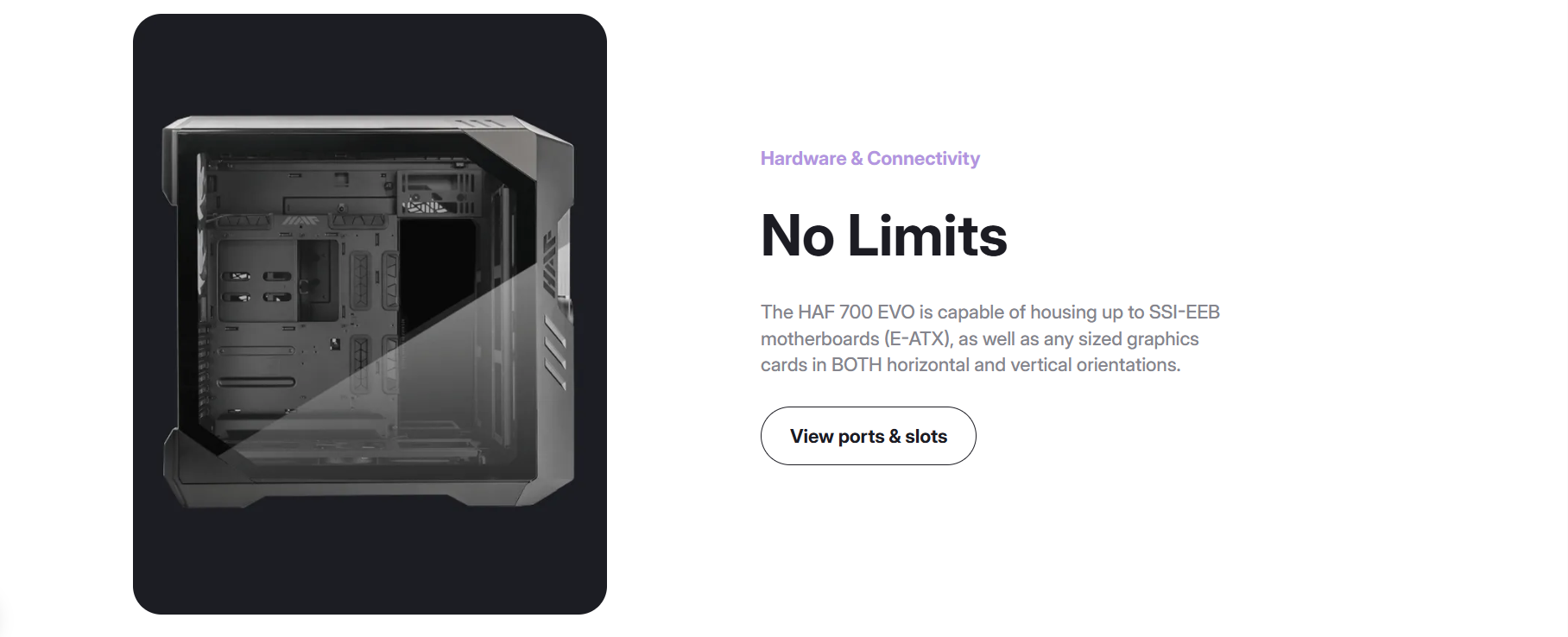

| Motherboard Support | Mini ITX, Micro ATX, ATX, E-ATX, SSI CEB, SSI EEB |
|
|
|
| 2.5" / 3.5" Drive Bays (combo) | 12 |
|
|
| I/O Panel - USB Ports | 1x USB 3.2 Gen 2 Type C, 4x USB 3.2 Gen 1 (3.0) |
|
| I/O Panel - Audio In / Out | 1x 3.5mm 4 Poles Audio Jack, 1x 3.5mm Mic Jack |
|

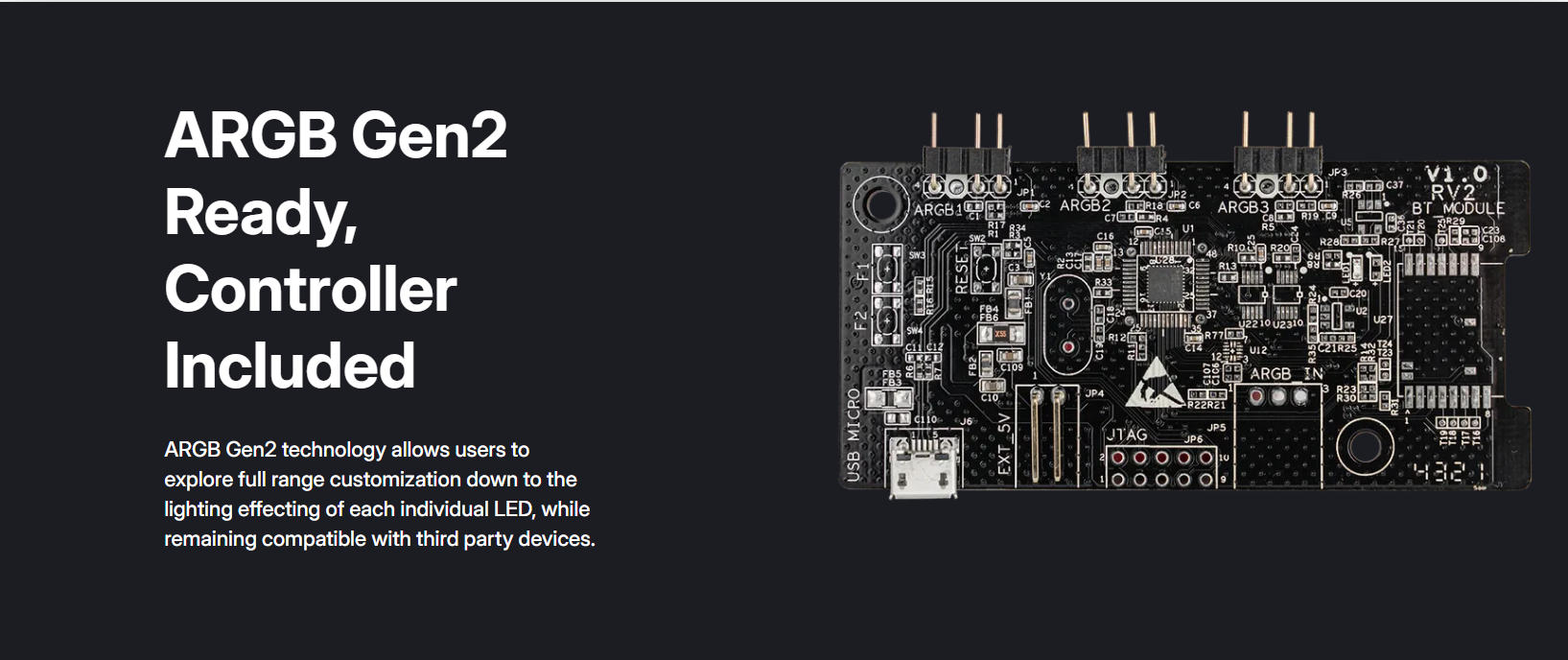

| I/O Panel - Other | 1x LED Controller A1 (ARGB Gen 2), 1x ARGB/PWM Hub |
|
| Pre-installed Fans - Front | 2x SickleFlow PWM Performance Ed. 200mm |
|
| Pre-installed Fans - Rear | 2x SickleFlow PWM ARGB 120mm |
|
| Pre-installed Fans - Bottom | 1x SickleFlow PWM ARGB 120mm |
|
| Fan Support - Top | 2x 200mm, 3x 140mm, 6x 120mm (Remove 480mm bracket) |
|
| Fan Support - Front | 2x 200mm, 3x 120/140mm |
|
| Fan Support - Rear | 2x 120mm |
|
| Fan Support - Bottom | 3x 120/140mm |
|
| Fan Support - Side | 4x 120mm / 3x 140mm |
|
| Radiator Support - Top | Up to 2x 360mm / 1x 420mm |
|
| Radiator Support - Front | Up to 420/360mm |
|
| Radiator Support - Rear | Up to 240mm |
|
| Radiator Support - Bottom | Up to 420/360mm |
|
| Radiator Support - Side | Up to 480/420mm |
|
| Clearance - CPU Cooler | 166mm / 6.53 inch |
|
| Clearance - PSU | 200mm / 7.87 inch |
|
| Clearance - GFX | 490mm / 19.29 inch |
|
| Cable Routing - Behind Motherboard Tray | 90-101mm |
|
| Additional Included Accessories | Universal Graphics Card Holder Kit V2 |
|
| Dust Filters | Front, Bottom, Side |
|
| Power Supply Support | Bottom Mount, ATX |
|
