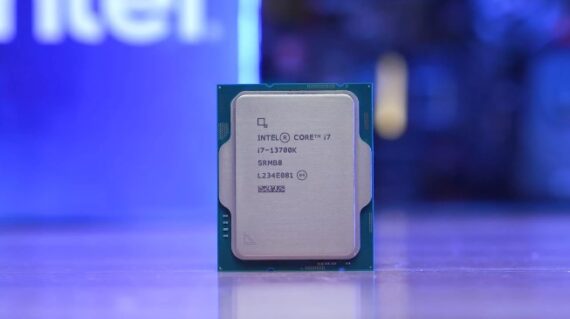

Product Collection13th Generation Intel® Core™ i7 ProcessorsCode NameProducts formerly Raptor LakeVertical SegmentDesktopProcessor Number i7-13700KLithography Intel 7Recommended Customer Price $409.00
CPU Specifications
Total Cores 16# of Performance-cores8# of Efficient-cores8Total Threads 24Max Turbo Frequency 5.40 GHzIntel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.40 GHzPerformance-core Max Turbo Frequency 5.30 GHzEfficient-core Max Turbo Frequency 4.20 GHzPerformance-core Base Frequency 3.40 GHzEfficient-core Base Frequency 2.50 GHzCache 30 MB Intel® Smart CacheTotal L2 Cache24 MBProcessor Base Power 125 WMaximum Turbo Power 253 WSupplemental Information
Marketing StatusLaunchedLaunch Date Q4'22Embedded Options Available NoUse Conditions PC/Client/Tablet, WorkstationDatasheetView nowMemory Specifications
Max Memory Size (dependent on memory type) 192 GBMemory Types Up to DDR5 5600 MT/sUp to DDR4 3200 MT/sMax # of Memory Channels 2Max Memory Bandwidth 89.6 GB/sECC Memory Supported ‡ Yes
GPU Specifications
GPU Name‡ Intel® UHD Graphics 770Graphics Base Frequency 300 MHzGraphics Max Dynamic Frequency 1.60 GHzGraphics Output eDP 1.4b, DP 1.4a, HDMI 2.1Execution Units 32Max Resolution (HDMI)‡ 4096 x 2160 @ 60HzMax Resolution (DP)‡ 7680 x 4320 @ 60HzMax Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120HzDirectX* Support 12OpenGL* Support 4.5OpenCL* Support 3.0Multi-Format Codec Engines 2Intel® Quick Sync Video YesIntel® Clear Video HD Technology Yes# of Displays Supported ‡4Device ID0xA780Expansion Options
Direct Media Interface (DMI) Revision4.0Max # of DMI Lanes8Scalability1S OnlyPCI Express Revision 5.0 and 4.0PCI Express Configurations ‡ Up to 1x16+4, 2x8+4Max # of PCI Express Lanes 20Package Specifications
Sockets Supported FCLGA1700Max CPU Configuration1Thermal Solution Specification PCG 2020ATJUNCTION 100°CPackage Size45.0 mm x 37.5 mmMax Operating Temperature 100 °CAdvanced Technologies
Intel® Volume Management Device (VMD) YesIntel® Gaussian & Neural Accelerator 3.0Intel® Thread Director YesIntel® Deep Learning Boost (Intel® DL Boost) on CPU YesIntel® Speed Shift Technology YesIntel® Turbo Boost Max Technology 3.0 ‡ YesIntel® Turbo Boost Technology ‡ 2.0Intel® Hyper-Threading Technology ‡ YesIntel® 64 ‡ YesInstruction Set 64-bitInstruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2Idle States YesEnhanced Intel SpeedStep® Technology YesThermal Monitoring Technologies YesSecurity & Reliability
Intel vPro® Eligibility ‡ Intel vPro® Enterprise, Intel vPro® Essentials, Intel vPro® PlatformIntel® Threat Detection Technology (TDT)YesIntel® Active Management Technology (AMT) ‡ YesIntel® Standard Manageability (ISM) ‡ YesIntel® Remote Platform Erase (RPE) ‡YesIntel® One-Click Recovery ‡YesIntel® Hardware Shield Eligibility ‡ YesIntel® Control-Flow Enforcement Technology YesIntel® Total Memory Encryption - Multi KeyYesIntel® AES New Instructions YesSecure Key YesIntel® OS GuardYesIntel® Trusted Execution Technology ‡ YesExecute Disable Bit ‡ YesIntel® Boot Guard YesMode-based Execute Control (MBEC) YesIntel® Stable IT Platform Program (SIPP) YesIntel® Virtualization Technology with Redirect Protection (VT-rp) ‡YesIntel® Virtualization Technology (VT-x) ‡ YesIntel® Virtualization Technology for Directed I/O (VT-d) ‡ YesIntel® VT-x with Extended Page Tables (EPT) ‡ YesModel
Prime LC 240 ARGB
Water Block
Water block dimention:65.1 x 60.58 x 68.5 mm
Block Material (CPU Plate):Copper
Radiator
Radiator Dimension: 277 x 120 x 27 mm
Tube: Sleeved Rubber tube
Tube Length: 400 mm
Fan
Fan:PRIME LC 24025 Integrated Fan
- Size: 2 x Fan Slots (120mm)
- Dimension:240 x 123 x 25 mm
- Speed: 600 - 2200 RPM +/- 10%
- Static Pressure:3.2 mmH2O
- Air Flow: 75.7 CFM
- Noise: 34 dB(A)
- Control Mode: PWM/ DC
Special Features
AURA Sync Support:Yes
Compatibility
AMD: AM5,AM4
Intel: LGA 1851, 1700, 1200, 115x
Package Content
1 x CPU Liquid Cooler (pre-applied thermal compound)
1 x Accessory Pack of Screws and Brackets
1 x Quick Start Guide
