GRAPHICS ASUS TUF RTX3070-O8G-V2- GAMING (90YV0FQI-M0NA00)

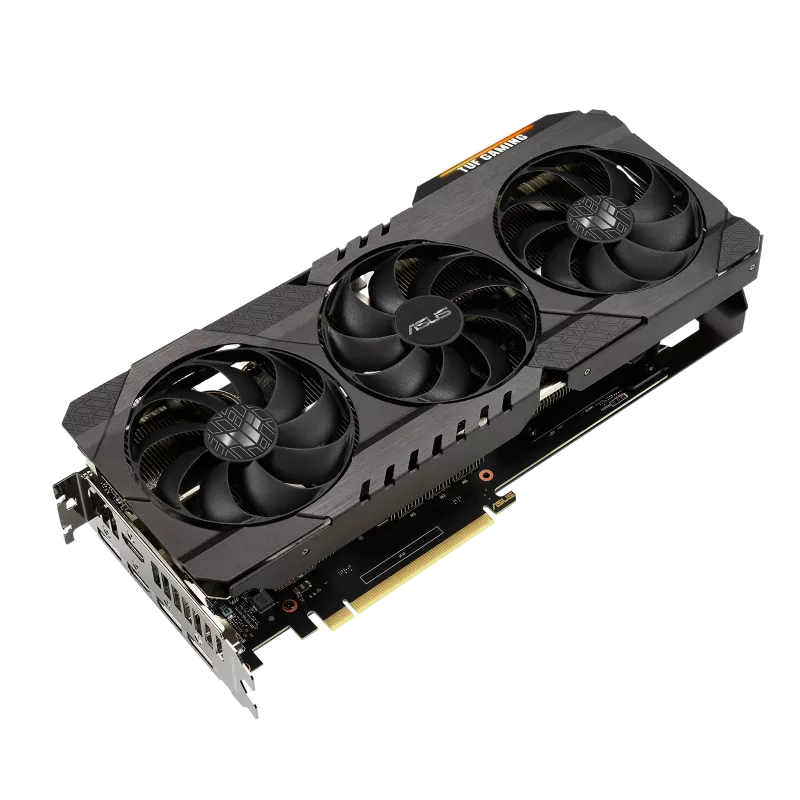

TUF Gaming GeForce RTX™ 3070 V2 OC Edition 8GB GDDR6 with LHR offers a buffed-up design that delivers chart-topping thermal performance.

• NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
• 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
• 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
• This GeForce RTX 3070 graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.).
• OC edition: Boost clock 1845 MHz (OC mode)/1815 MHz (Gaming mode).
• Axial-tech Fan Design has been newly tuned with a reversed central fan direction for less turbulence.
• Dual Ball Fan Bearings can last up to twice as long as sleeve bearing designs.
• Military-grade Capacitors and other TUF components enhance durability and performance.
• GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

HEATSINK

MAXCONTACT

To get heat up off the die and into the heatsink array, we've engaged MaxContact technology to polish the surface of the heat spreader and improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for enhanced thermal transfer.

HEATSINK

2.7-SLOT DESIGN

The heat spreader draws heat up into heat pipes that carry it through a fin stack that fills most of the card's large, 2.7-slot footprint.

TUF COMPONENTS

Components are selected for TUF Gaming graphics cards based on their durability and performance. In addition to top-shelf chokes and MOSFETs, capacitors that meet military-grade certification make the TUF stand tall amongst the competition. The components are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Smooth joints on the rear of the PCB and the elimination of human errors ensure each graphics card meets our rigorous specifications. Finally, to ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial.

• Stainless Steel Bracket

• Dual BIOS

• Vented Backplate
