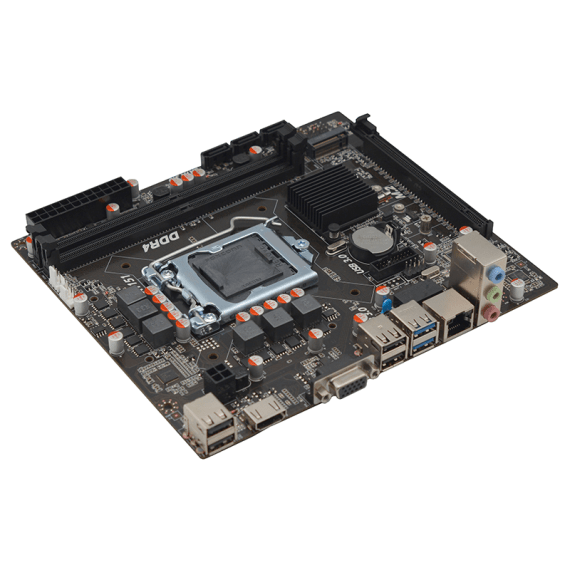

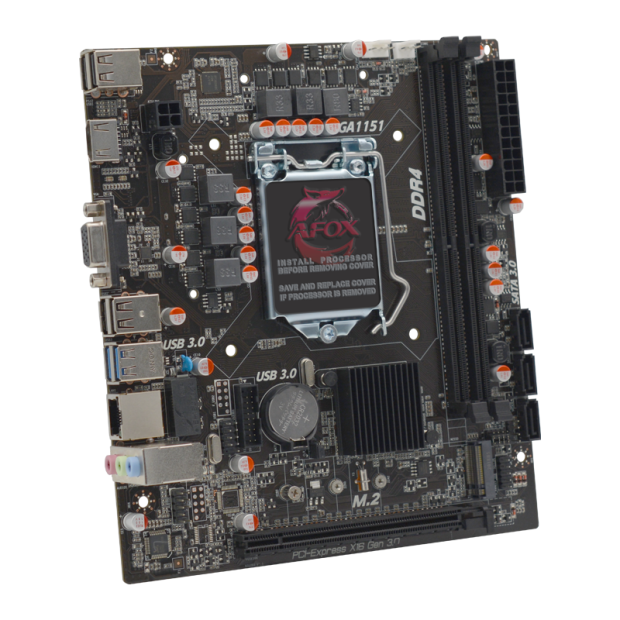

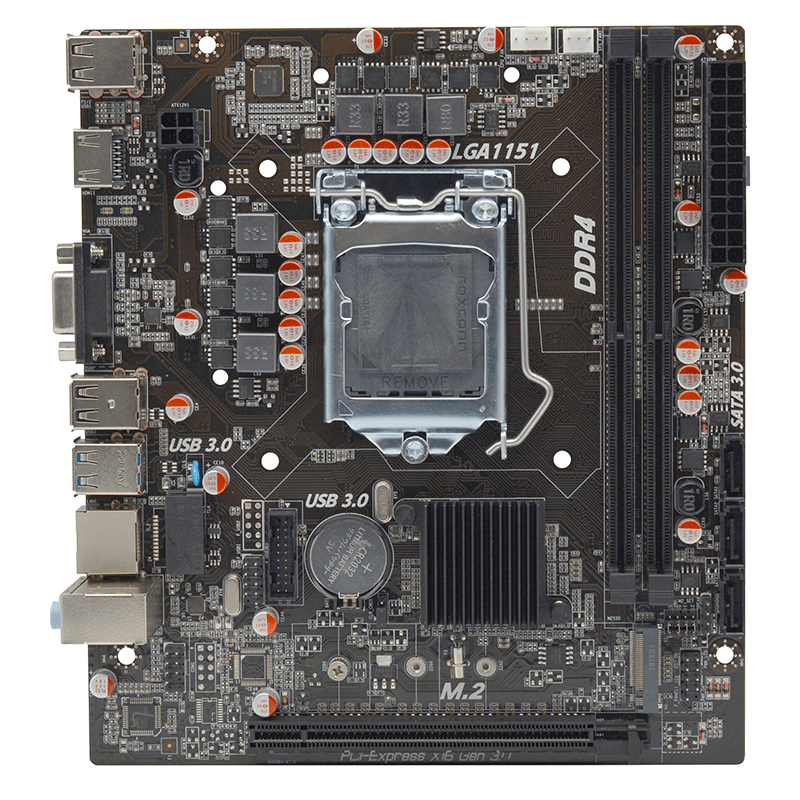

Motherboard Intel1151/DDR4 Afox (IH310C-MA6-V4)
13 sold in last 24 hours
Model Name: IH310C-MA6
Chipset: Intel® H310C
Socket: INTEL Socket 1151
Supports Intel Core™ i7 / Core™ i5 / Core™ i3 Processors
Supports Intel 6th, 7th, 8th and 9th Generation (CPU up to 95 watts)
Dual channel DDR4, two memory slots
2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz Memory up to 64GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Greater capacity
Rapid transmission is always ready
Rambling mainstream game world
Wonderful design rendering effect
Satisfy all your computing demands
Platform | INTEL Socket 1151 |
Model Name | IH310C-MA6 |
Chipset | Intel® 310C |
CPU Supports | Intel Core™ i7 / Core™ i5 / Core™ i3 Processors Supports Intel 6th, 7th, 8th and 9th Generation (CPU up to 95 watts) |
FSB | 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz |
Memory | Dual Channel DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz |
Dimm | 2 x Memory Slots (Max. capacity of system memory 64GB) |
Onboard Graphics | Intel® HD Graphics |
PCI/PCI-E Slots | 1 x PCI Express x16 3.0 slot |
SATA | 3 x SATA3, 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3) |
IDE | N/A |
Audio | Realtek 662 on board, Supports 6-channel audio-out |
LAN | Realtek RTL8105/8106 10/100Mbps Ethernet on board |
Back Panel I/Os | 1 x HDMI Port 1 x D-Sub (VGA) Port 2 x USB 3.0 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port with LED 3 x HD Audio Jacks (Line in / Front Speaker / Microphone) |
ON-Board Pinheaders/Connectors | 1 x USB 2.0 pinheader (supports additional 2 USB 2.0s), 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader 1 x com 1 x DEBUG1 |
BIOS | UEFI BIOS |
Form Factor | Micro-ATX (17 ×19cm) |
Mounting | 4 mounting holes |
Accessories | 1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
Model
Prime LC 240 ARGB
Water Block
Water block dimention:65.1 x 60.58 x 68.5 mm
Block Material (CPU Plate):Copper
Radiator
Radiator Dimension: 277 x 120 x 27 mm
Tube: Sleeved Rubber tube
Tube Length: 400 mm
Fan
Fan:PRIME LC 24025 Integrated Fan
- Size: 2 x Fan Slots (120mm)
- Dimension:240 x 123 x 25 mm
- Speed: 600 - 2200 RPM +/- 10%
- Static Pressure:3.2 mmH2O
- Air Flow: 75.7 CFM
- Noise: 34 dB(A)
- Control Mode: PWM/ DC
Special Features
AURA Sync Support:Yes
Compatibility
AMD: AM5,AM4
Intel: LGA 1851, 1700, 1200, 115x
Package Content
1 x CPU Liquid Cooler (pre-applied thermal compound)
1 x Accessory Pack of Screws and Brackets
1 x Quick Start Guide
