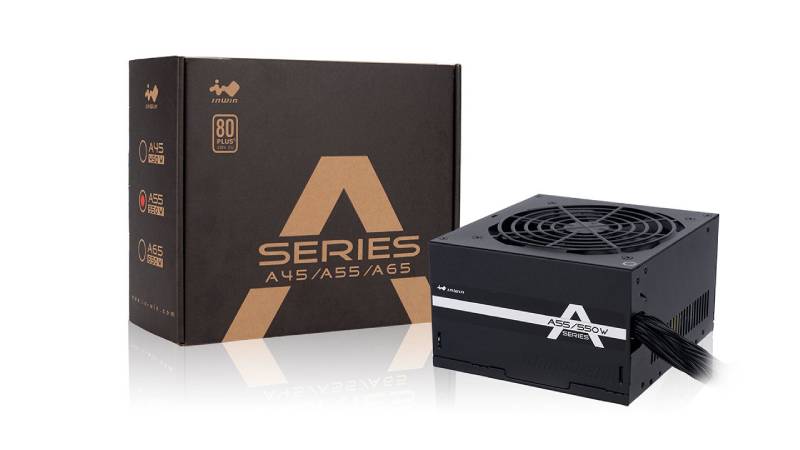

Power Supply INWIN 550W
9 sold in last 24 hours
Power Supply INWIN 550W
Quality Power, Great Performance, Low Noise
The InWin A Series is a power supply with high compatibility and reliability, it meets the 80 PLUS® certification for 230V. Equipped with powerful single +12V rail design and multi-protection safeguards. The A Series provides great performance at a good price.
80 PLUS ® 230V EU Standard Certified
The A Series is an 80 PLUS® 230V EU Standard Certified power supply. It delivers up to 85% efficiency during normal use, generating less heat and effectively maintain the power supply’s stability.
Smart Thermal Control to Balance Cooling and Noise
The A Series utilizes a smart temperature-controlled 120mm fan. It automatically detects heat to adjust the fan speed accordingly. It achieves silent operation and excellent thermal performance.
Single +12V rail design for High-End Systems
Powerful single +12V rail design, perfect for high-end components or overclocking.
3.3V DC to DC Design
DC to DC converter design provides superior dynamic response and supports a foundation for greater system stability.
Cable Information
Specifications
| Model | A45 | A55 | A65 |
|---|---|---|---|
| Part Numbers | IW-A450 | IW-A550 | IW-A650 |
| Total Power | 450W | 550W | 650W |
| Material | SECC | ||
| Type | ATX12V V2.4 | ||
| PFC | Active PFC | ||
| Efficiency | 80 PLUS®230V EU Standard (Up to 85%) | ||
| MTBF (Hours) | >100,000 hrs. | ||
| AC Input | 200 - 240Vac., 50-60Hz | ||
| Fan | 120mm Silent Fan | ||
| Operating Temperature Range (°C) | 0~40 °C | ||
| Full Protection | OVP / UVP / SCP / OPP | ||
| Safety Certifications | TUV / CE / RCM | ||
| Dimensions (L x W x H) | 140 x 150 x 86mm | ||
| Package Dimensions(L x W x H) | 240 x 185 x 98mm | ||
| Net Weight | 1.48 kg | 1.57 kg | 1.6 kg |
| Gross Weight | 1.84 kg | 1.93 kg | 2.0 kg |
| Connectors | 20+4 Pin Motherboard | 1 | |
| 8 (4+4) Pin CPU | 2 | ||
| 8 (6+2) Pin PCI-E | 2 | ||
| 4 Pin Peripheral | 3 | ||
| SATA | 6 | ||
| Floppy | 1 | ||
| * InWin products comply with RoHS regulations. * Specifications may vary based on different regions. |
Model
Prime LC 240 ARGB
Water Block
Water block dimention:65.1 x 60.58 x 68.5 mm
Block Material (CPU Plate):Copper
Radiator
Radiator Dimension: 277 x 120 x 27 mm
Tube: Sleeved Rubber tube
Tube Length: 400 mm
Fan
Fan:PRIME LC 24025 Integrated Fan
- Size: 2 x Fan Slots (120mm)
- Dimension:240 x 123 x 25 mm
- Speed: 600 - 2200 RPM +/- 10%
- Static Pressure:3.2 mmH2O
- Air Flow: 75.7 CFM
- Noise: 34 dB(A)
- Control Mode: PWM/ DC
Special Features
AURA Sync Support:Yes
Compatibility
AMD: AM5,AM4
Intel: LGA 1851, 1700, 1200, 115x
Package Content
1 x CPU Liquid Cooler (pre-applied thermal compound)
1 x Accessory Pack of Screws and Brackets
1 x Quick Start Guide
