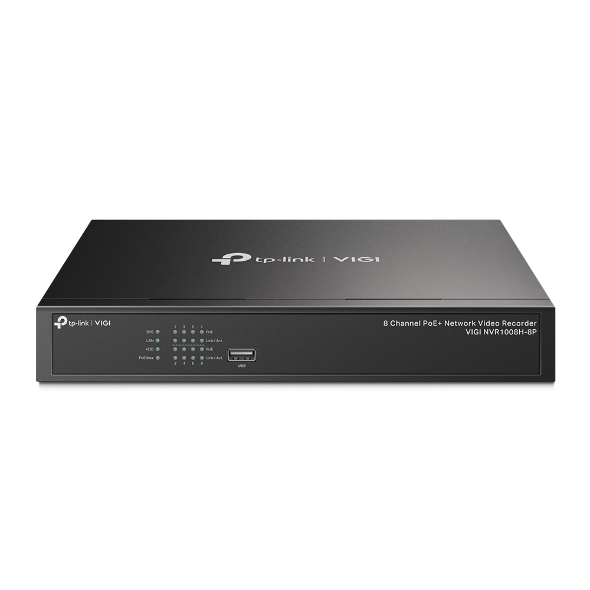

TP-Link 8 Channel PoE Network Video Recorder VIGI NVR1008H-8P(UN)
VIGI
by TP-Link
8 CHANNEL PoE+ NETWORK VIDEO RECORDER
VIGI NVR1008H-8P · UN
RECORD · POWER · MONITOR · PLAYBACK
VIGI NVR1008H-8P
8 Channel PoE+ Network Video Recorder
8 PoE+ PORTS
4K HDMI
H.265+
80 Mbps INPUT
ONVIF
Build a compact professional surveillance system with the TP-Link VIGI NVR1008H-8P. The recorder supports up to 8 IP camera channels and provides 8 integrated 10/100 Mbps PoE+ ports, allowing compatible cameras to receive both data and power through a single Ethernet cable. A total 53 W PoE budget, 4K HDMI output, H.265+ compression, up to 80 Mbps incoming bandwidth, 8-channel synchronous playback and ONVIF interoperability make it suitable for shops, offices, warehouses and other small-business surveillance installations.
BUSINESS VIDEO SURVEILLANCE
VIGI NVR1008H-8P
01
04
NVR1008H-8P · 8 CHANNEL PoE+
HDMI · VGA · AUDIO · LAN · 8× PoE+
INTERFACES · 294 × 180 × 44 mm
H.265+ · 8 PoE+ · 53W
PoE+ PORTS
Camera Power + Data
PoE BUDGET
Up to 30 W / Port
HDMI OUTPUT
3840 × 2160
PLAYBACK
Synchronous

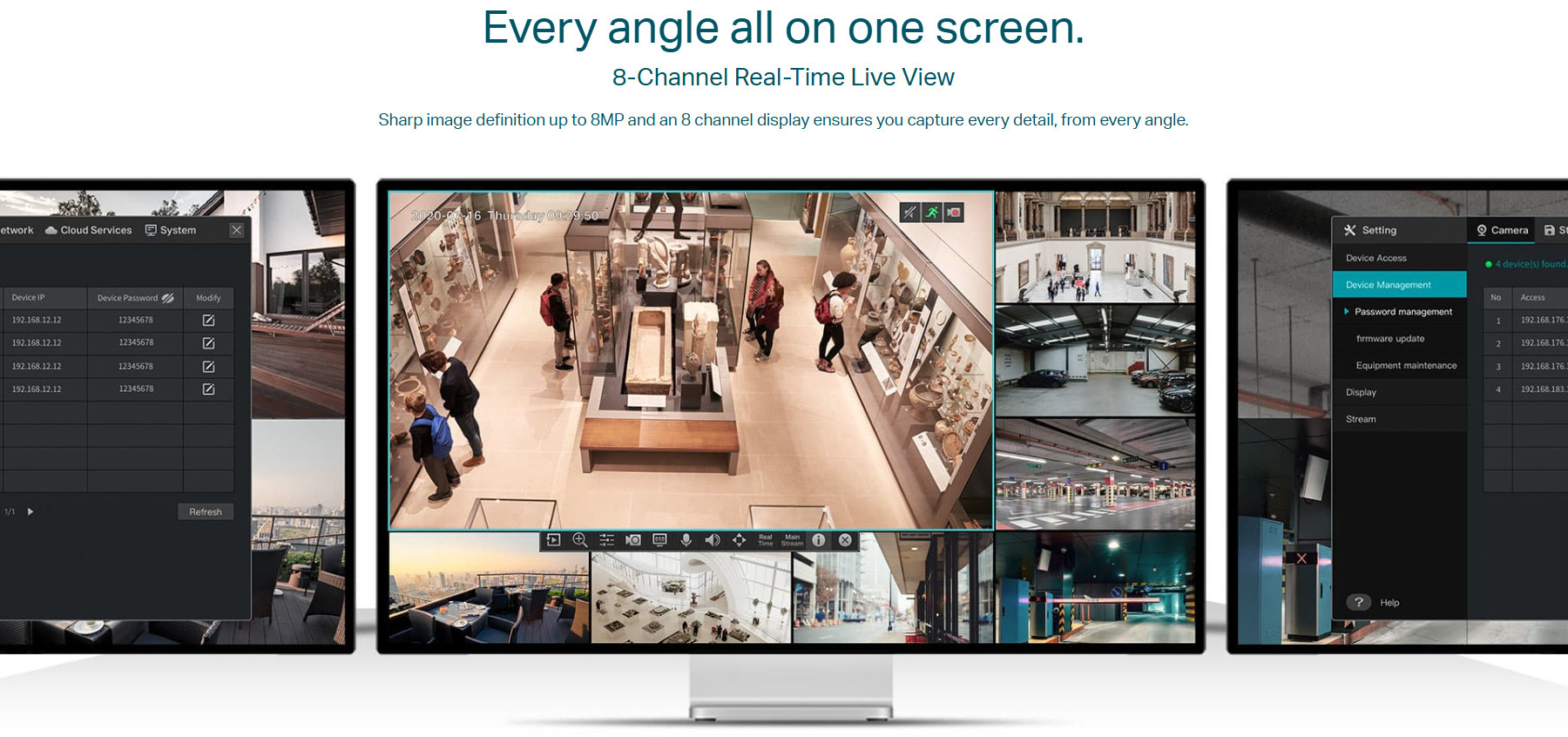

8-CHANNEL VIDEO SECURITY
Monitor up to eight IP cameras from one recorder.
IP VIDEO INPUT
8
CHANNELS
CENTRALIZED RECORDING
One NVR for a complete small-business camera system.
Connect and manage up to 8 compatible IP cameras for continuous recording, live monitoring, event review and remote management.
INTEGRATED PoE+
Power cameras and transmit video over one cable.
PoE+ PORTS
8×
10/100 Mbps
SIMPLIFIED CAMERA DEPLOYMENT
53 W total available PoE power budget.
4K LOCAL MONITOR OUTPUT
View surveillance footage in high resolution.
HDMI MAXIMUM
4K
3840 × 2160 / 30 Hz
DUAL DISPLAY CONNECTIVITY
HDMI and VGA can output simultaneously.
VIDEO DECODING CAPACITY
Balance channel count and camera resolution.
NETWORK VIDEO BANDWIDTH
Designed for multi-camera recording and remote viewing.

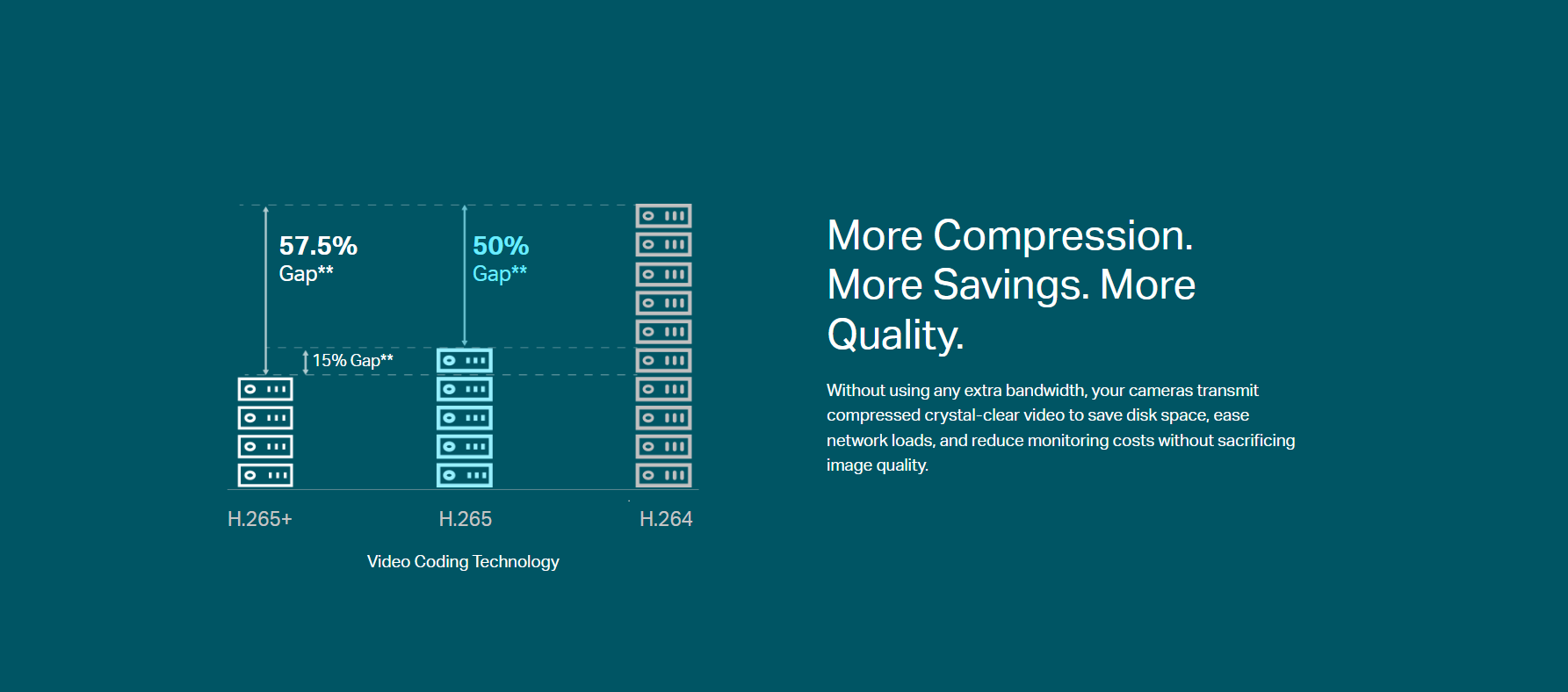

SMART VIDEO COMPRESSION
Store more footage with H.265+.
H.265+
Reduce storage and bandwidth demand.
The recorder supports H.265+, H.265, H.264+ and H.264 compression formats to balance image quality, network usage and recording capacity.
MULTIPLE RECORDING RESOLUTIONS
Record compatible cameras up to 8 MP.
8-CHANNEL SYNCHRONOUS PLAYBACK
Review multiple camera feeds together.
SIMULTANEOUS
8
CHANNELS
Faster incident review.
Replay feeds from multiple cameras at the same time, use timeline navigation, digital zoom, frame-by-frame review and video clip export.

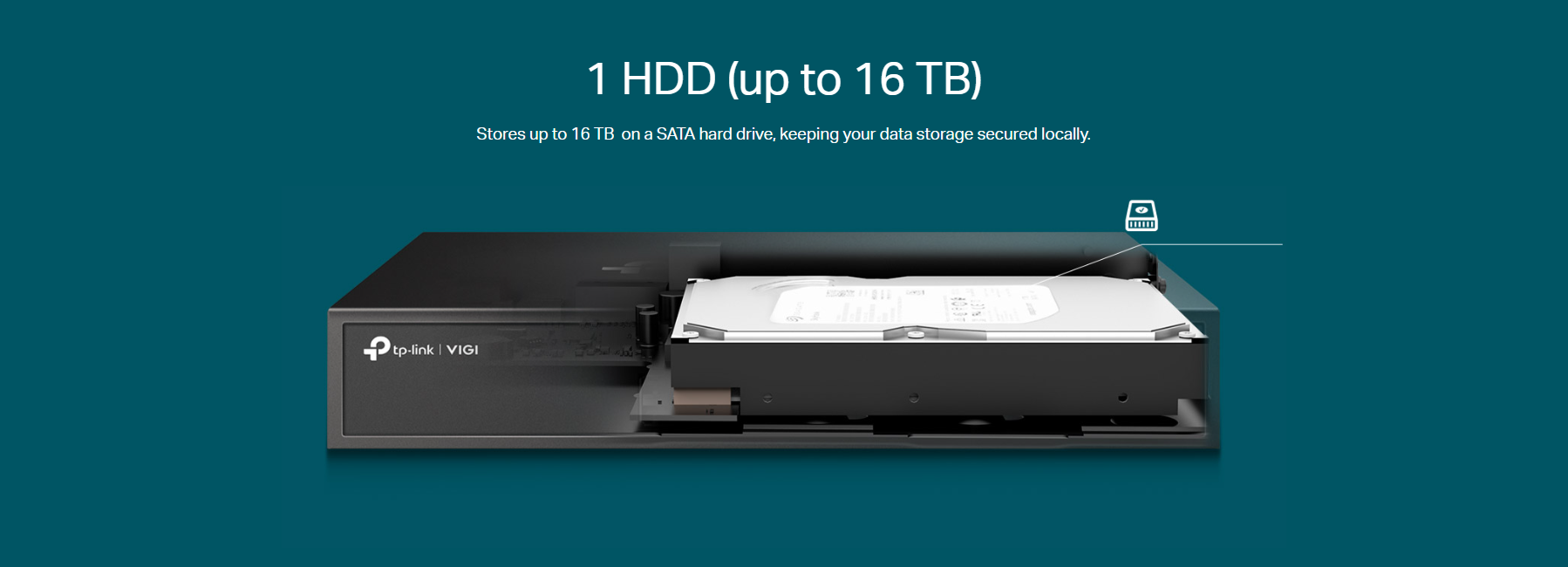

LOCAL HARD-DRIVE STORAGE
One internal SATA interface for continuous recording.
SATA BAYS
1×
INTERNAL HDD
FLEXIBLE RECORDING MODES
Capture video continuously or when events occur.
SMART CAMERA EVENTS
Centralize alerts from compatible VIGI cameras.
TWO-WAY AUDIO
Audio input and output for real-time communication.
CAMERA INTEROPERABILITY
Integrate compatible cameras through ONVIF.
ONVIF
Build a flexible IP surveillance network.
ONVIF support helps the NVR work with compatible third-party network cameras in addition to VIGI cameras.
PLUG & PLAY
Speed up compatible VIGI camera installation.

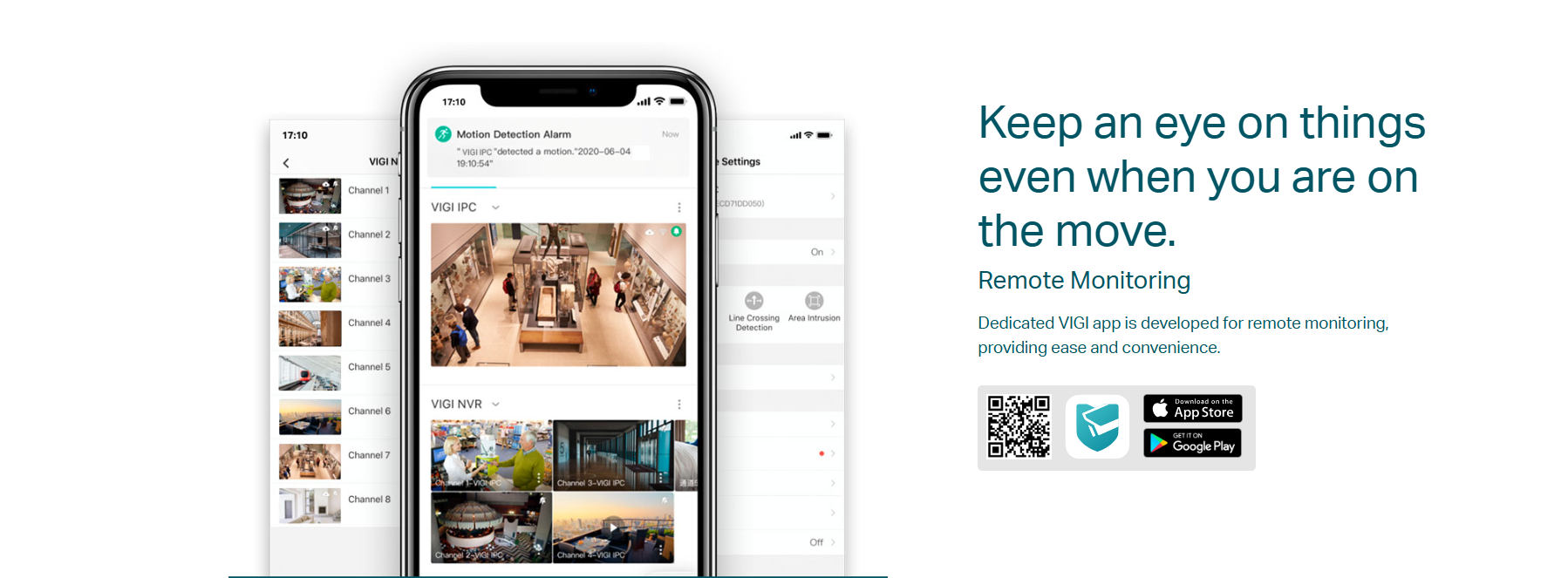

REMOTE MANAGEMENT
Monitor cameras from desktop, browser or mobile.
NETWORK INTERFACE
Connect the recorder to your local network.
LAN PORT
1×
RJ45
USB CONNECTIVITY
Connect a mouse or external backup storage.
SYSTEM ANOMALY ALERTS
Monitor recorder and network health.
EXTERNAL DC POWER
Dedicated power supply for recorder and PoE cameras.
BUSINESS OPERATING RANGE
Designed for continuous indoor surveillance operation.
COMPACT NVR CHASSIS
Fits compact surveillance installations.
PACKAGE CONTENTS
Core accessories for installation and operation.
TECHNICAL SPECIFICATIONS
VIGI NVR1008H-8P technical details.
01
VIDEO INPUT
- IP Video Channels
- 8
- Maximum Camera Resolution
- Up to 8 MP
- Multi-View
- 1 / 4 / 6 / 8
02
PoE
- PoE Ports
- 8 × RJ45
- Port Speed
- 10/100 Mbps
- PoE Standard
- IEEE 802.3af/at
- Total PoE Budget
- 53 W
- Maximum Per Port
- 30 W
03
BANDWIDTH
- Incoming Bandwidth
- 80 Mbps
- Outgoing Bandwidth
- 60 Mbps
04
VIDEO OUTPUT
- HDMI
- 1 Channel
- Maximum HDMI Resolution
- 3840 × 2160 / 30 Hz
- VGA
- 1 Channel
- Maximum VGA Resolution
- 1920 × 1080 / 60 Hz
- Output Mode
- HDMI / VGA Simultaneous
05
DECODING
- Video Compression
- H.265+ / H.265 / H.264+ / H.264
- Audio Compression
- G.711A / G.711U / G.726
- 25 fps
- 2×8MP / 4×4MP / 8×2MP
- 30 fps
- 2×5MP / 4×3MP
06
PLAYBACK
- Synchronous Playback
- Up to 8 Channels*
- Instant Playback
- Supported
- Event Playback
- Supported
- Tag Playback
- Supported
- Digital Zoom
- Supported
07
STORAGE
- SATA Interface
- 1
- Current V1.20 Capacity
- Up to 16 TB*
- HDD Included
- No
08
RECORD MANAGEMENT
- Manual Recording
- Supported
- Scheduled Recording
- Supported
- Motion Recording
- Supported
- Video Clip Backup
- Supported
09
NETWORK
- LAN Interface
- 1 × RJ45 10/100 Mbps
- Protocols
- TCP/IP / DHCP / DNS / NTP / UPnP
- Interoperability
- ONVIF Profile S / CGI
10
REMOTE ACCESS
- Android
- Supported
- iOS
- Supported
- Chrome
- 57+
- Firefox
- 52+
- Edge
- 91+
11
EXTERNAL INTERFACES
- USB
- 2 × USB 2.0
- Audio Input
- 1 × RCA
- Audio Output
- 1 × RCA
- HDMI
- 1
- VGA
- 1
- Reset Button
- Yes
12
GENERAL
- Power Supply
- 53.5 V DC / 1.31 A
- Operating Temperature
- -10°C to 55°C
- Storage Temperature
- -40°C to 70°C
- Operating Humidity
- 10%–90% RH
13
PHYSICAL
- Width
- 294 mm
- Depth
- 180 mm
- Height
- 44 mm
- Net Weight
- Approx. 1.12 kg*
14
PACKAGE CONTENTS
- VIGI NVR
- 1×
- Power Adapter
- Included
- Mouse
- Included
- HDD Screws
- Included
- Quick Installation Guide
- Included
This presentation is for the VIGI NVR1008H-8P PoE+
model, not the non-PoE NVR1008H.
Current V1.20 regional specifications list one SATA drive
up to 16 TB. Older V1.0 documentation may list a 10 TB
maximum, so supported HDD capacity should be checked
against the exact hardware version being supplied.
HDD is sold separately.
Up to eight-channel synchronous playback depends on the
combined playback resolution and decoding load.
PoE budget figures are based on laboratory conditions;
actual available PoE power can vary with connected devices
and operating conditions.
